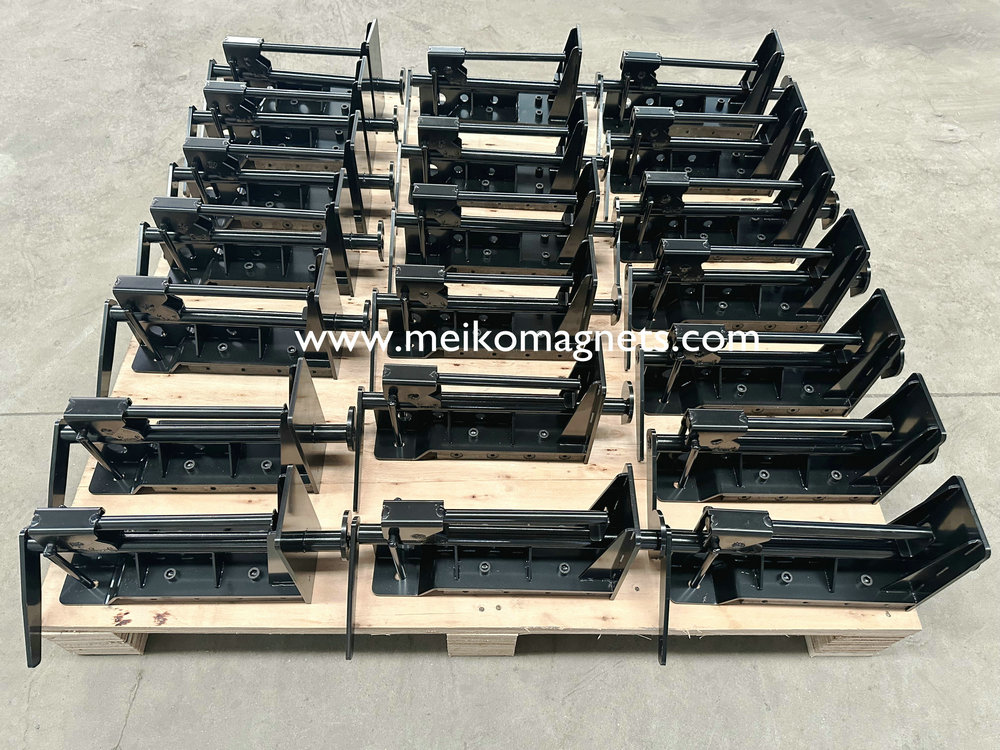

Magnetic Clamp for Precast Wooden Formwork

Short Description:

Precast Concrete Magnetic Clamp is a traditional type formwork side mold fixing magnets, typically for precast wooden formwork mold. Two integral hands are designed to move or release the magnets from the steel platform. No special lever bar is required to take it away.

  • Type: WM-1800 Precast Magnetic Clamp
  • Material: Q235 Metal, Neodymium Magnets
  • Retaining Forces (KG): Vertical 1500KG, 1800KG, 2100KG as required
  • Surface Treatment: Black Electrophoresis or Color Painting
  • Product Detail

    Product Tags

    As an old generation magnetic fixture for precast wooden formwork mould, this type of  shuttering magnetic clamp still acts a postive role in the modern precasting industry. For some countries and areas, like America, Canada & Northern Europe, wood materials could be obtained readily with low costs. Meanwhile, due to the characteristics of easy shaping and framing, it’s widely applicated to make required moulds.

    Precast-Concrete-Formwork-Magnetic ClampMagnetic Clamp Fixture is designed with two handles to switch the magnet and move it to whereever you need. The handle in the top is a carrying bar and an easy releasing bar. When you lift it up, the connected two feets will be put down to lever the whole magnet. Furthermore, the ending handle could be supportive to turn the oval plates around on the wood forms to help the magnet levering on the table. With advantage of lever principle, the long arm of force is great helpful for labor saving to maximize the torque.

    Two factors shall be considered to fit your mold. One is the pulling force of magnet, and the other is the wooden mould height. The sampled magnetic clamp features 1800KG vertical pulling force. And the determined wooden height is 50mm.  But it’s available for to adjust the magnet retaining force and suitable wooden mold height. In addtion, if any requirement for table room restriction, we are also capable to short the length of magnetic fixture.


    VM-1800 375 100 185 1800 50




    Wooden Formwork Magnets
