Magfly AP Side-forms Holding Magnets

Short Description:

Magfly Ap type holding magnets are greatly helpful for fixing the side-forms in place, horizontally as well as vertically. It features power force over 2000KG, but in a limited weight only 5.35KG.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

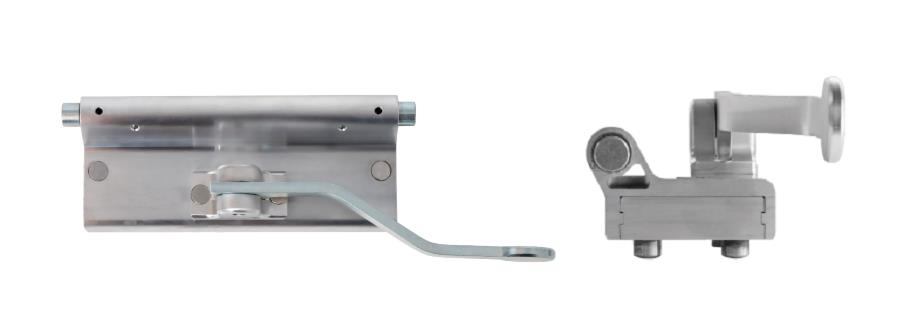

    Magfly AP type holding magnets are greatly helpful for fixing the side-forms in place, horizontally as well as vertically.  The side forms can be directly screwed or nailed against the plywood. As the material of housing is a casting Aluminum, this magnetic system could offer super power magnetic adhesive force under extreme light weight.

    Once need to use it, just press the magnet and it will be activated and attached to the mold table. It can be conveniently released and removed into other position with the above nailed handle. No hammer or lever bar tool required to finish this process.

    Features

    1. Powerful holding force over 2000KG, due to the integrated rare earth magnetic block system.

    2. Durable and anti-rusty casting Aluminum housing, with extreme light weight under 5.35KG

    3. Special four feet with spring could be supportive to create a time gap between magnets placed and moving to right position.

    4. Easy operating and releasing, no extra lever tool or hammer required to de-active and remove.

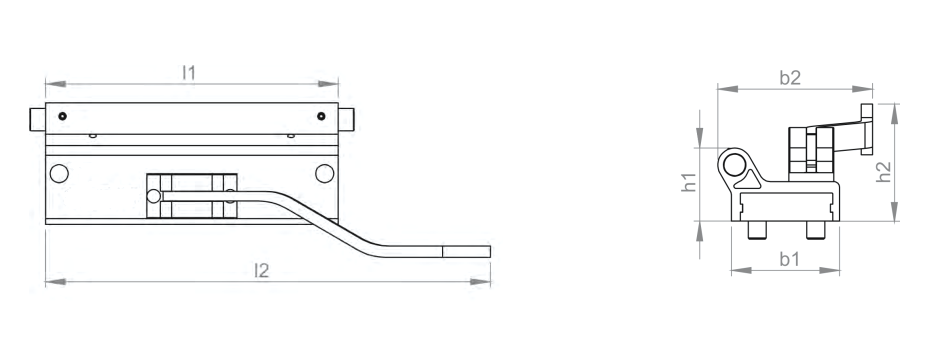

    Part No. L1 L2 b1 b2 h1 h2 N.W. Force
    mm mm mm mm mm mm kg N
    MK-MAP right level 260 407 96 124 65 96 5.35 20000
    MK-MAP left Level 260 407 96 124 65 96 5.35 20000
    MK-MAP 90° Level 260 290 96 207 65 85 5.35 20000

    MAGFLY_AP_MAGNET

    Meiko Magnetics is a professional magnetic system developer and OEM production provider. With 10+ years experiences on magnetic assemblies, we are capable of designing and producing various types of shuttering magnets according to customs’ requirement.
