Shuttering Magnets, Precast Concrete Magnets, Magnetic Formwork System
Short Description:
Shuttering Magnets, also named Precast Concrete Magnets, Magnetic Form-work System, is typically designed and manufactured for positioning and fixing form-work side rail profile in processing of precast elements. The integrated neodymium magnetic block could hold the steel casting bed tightly.
The On/Off Switchable Precast Box Magnet is a typical shuttering magnet type of precast magnetic solutions, applied for positioning and fixing shuttering side mold on the steel casting bed in the field of precast element productions, such as precast concrete interior/exterior wall panel, stairs, balconies for the most molds, as steel mold, aluminum molds, wooden & plywood molds. It plays a new critical role for featuring higher productivity, easier operating method of precast production, compared to traditional bolting or welding on the steel tables, especially for the tilt-up table.
As long as the framework settled down, the shuttering magnets could freely move into the right position. It’s essential to check the surface of magnet and bed on this step, cleaning up the adsorbed ferrous stuffs on the outward magnet as well as remaining concrete on the platform, to make sure the magnets tightly hold the table, without any gap.
Subsequently, the unique designed button can be pushed to make magnets attracted on the steel plate firmly, which will generate extremely multi magnetic circles between emerged magnetic block and steel table, through the outputting magnetic flux. The integrated super powerful permanent sintered neodymium magnets (NdFeB) are being constantly and strongly supportive to fix the side rail profile against removing and sliding, under the processing of concrete pouring and vibrating inside of frame mold.
Once prefabricated components accomplished and side mold de-attached, an extra professional steel lever could be used for pulling up the button to release the magnet by manual operation. After magnet works done, it should be taken away and stored regularly for further maintenance, like cleaning up, anti-rusty lubricating to keep a durable performance in the next round of use.

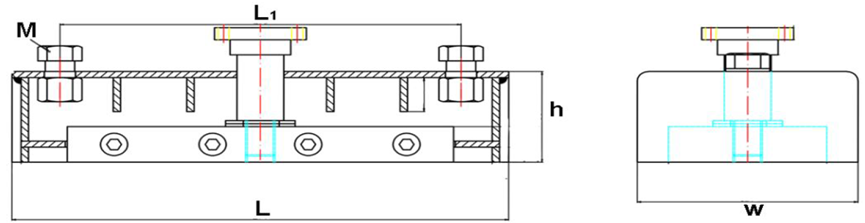

Standard Dimensions
| ITEM NO. | L | W | h | L1 | M | Adhesive Force | Net Weight |
| mm | mm | mm | mm | kg | kg | ||
| SM-450 | 170 | 60 | 40 | 136 | M12 | 450 | 1.8 |
| SM-600 | 170 | 60 | 40 | 136 | M12 | 600 | 2.0 |
| SM-900 | 280 | 60 | 40 | 246 | M12 | 900 | 3.0 |
| SM-1350 | 320 | 90 | 60 | 268 | M16 | 1350 | 6.5 |
| SM-1500 | 320 | 90 | 60 | 268 | M16 | 1500 | 6.8 |
| SM-1800 | 320 | 120 | 60 | 270 | M16 | 1800 | 7.5 |
| SM-2100 | 320 | 120 | 60 | 270 | M16 | 2100 | 7.8 |
| SM-2500 | 320 | 120 | 60 | 270 | M20 | 2500 | 8.2 |
Advantages
-High Forces from 450KG to 2500KG in small body, save the space of your mold extremely
-Integrated automatic mechanism with steel springs for easier operation
-Welded threads M12/M16/M20 to adapt required form-work fixture
-Multi-functions magnets for different purpose
-Various type of adapters are equipped to match your side rail profile, no matter wooden, plywood, steel, aluminum mold.
