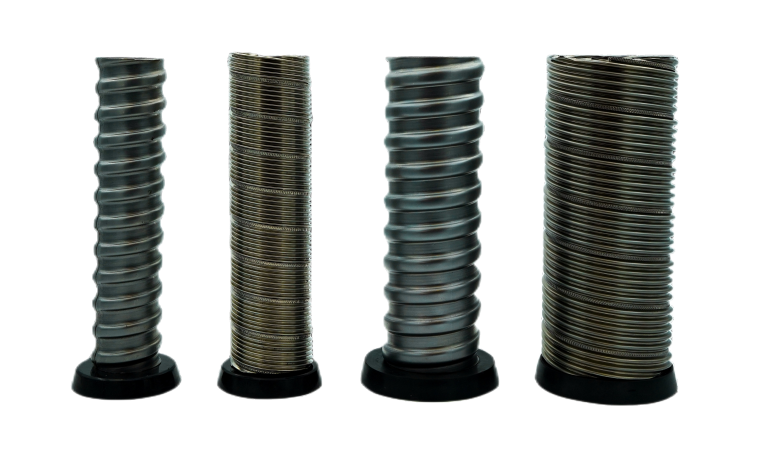

Magnetic Holder for Corrugated Metal Pipe
Short Description:
This kind of Pipe magnet with rubber plated is typically used for fixing and holding metal pipe in the precasting. Compared to metal inserted magnets, the rubber cover can offer great shearing forces from sliding and moving. The tube size ranges from 37mm to 80mm.
Corrugated Metal Pipe Magnetic Holder is the combination of steel inserted magnet and a rubber cover. With benifit of outer compressible rubber and inserted powerful neodymium magnets, this pipe magnet could tighten the metal pipe greatly and hold the pipe/tube stabliy on the steel framework in the processing of precast production.
Pipe Magnet consist of
• A magnet
• A magnet cover
• A compressible rubber part
• A metal fixing plate
| Type | D1(mm) | D2(mm) | Force(KG) |
| RPM27 | 70 | 27 | 80 |
| RPM37 | 70 | 37 | 80 |
| RPM47 | 70 | 47 | 80 |
| RPM57 | 95 | 57 | 120 |
| RPM77 | 95 | 77 | 120 |
