Portable Permanent Magnetic Hand Lifter for Transshipping Metal Plates

Short Description:

The permanent Magnetic Handlifter has exclusively pefected the use of transshipping metal plates in workshop production, especially thin sheets as well as sharp edged or oilly parts. The integrated permanent magnetic system can offer 50KG rated lifting capacity with 300KG Max pulling off force.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Product Tags

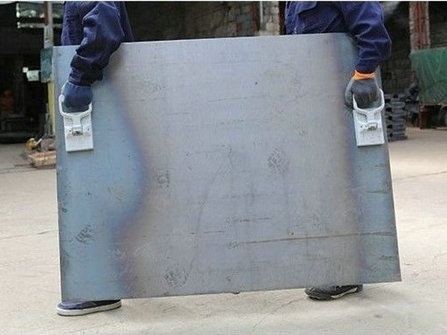

    The portable permanent Magnetic Handlifter has exclusively pefected the use of transshipping metal plates in workshop production, especially thin sheets as well as sharp edged or oilly parts. The integrated permanent magnetic system can offer 50KG rated lifting capacity with 300KG Max pulling off force. It's easy to control and retrieve the magnet from ferrous substance with a ON/OFF pushing handle. No extra electricity or other power needed to drive this magnetic tool.

    Retrieval_Magnet

    Advantages

    1. 6 times safety factor of stability. High grade of permanent ferrite magnet support 50KG rated lifting capacity.

    2. Simple operation makes working effective. Operate with single hand, easy to place and release.

    3. Multiple lifters can work together to transship the big metal parts.

    Specifications

    L(mm) W(mm) H(mm) h(mm) Working Temp.(℃) Rated Lifting Capacity(KG) Max Pull Off Force (KG) N.W.(KG/PC)
    140 100 180 25 80 50 300 1.8
